A mattress production line is only as fast as its weakest transfer point. When coilers, knotting machines, and assemblers are upgraded but the spring handling bridge remains mechanical and slow, factories lose output every shift. Modern Bonnell spring transfer technology addresses this gap with servo motion, PLC control, tighter tolerances, and more reliable synchronization across the line. For manufacturers comparing equipment from suppliers such as HJ787, the real question is not simply peak speed, but sustained yield, reduced downtime, and compatibility with wire and spring specifications. This article explains what matters when evaluating next-generation transfer systems and how the right upgrade can improve throughput, consistency, and long-term operating efficiency.
Why Is Upgrading a Bonnell Spring Transfer Line Now a
Mattress manufacturing relies heavily on automated production lines, where the efficiency of spring transfer dictates overall factory throughput. Upgrading a Bonnell Spring Transfer Line represents a critical strategic imperative for facilities looking to reduce labor dependency and increase yield.
Legacy mechanical systems, often operating at maximum capacities of 60 to 80 springs per minute, create severe bottlenecks when paired with modern high-speed assemblers. Modernizing this bridge ensures that the primary coilers and secondary knotting machines can operate at their true mechanical limits without material starvation.
How does next-generation Bonnell Spring Transfer Line technology
Next-generation systems abandon traditional cam-driven mechanics in favor of multi-axis servo motors and programmable logic controllers (PLCs). This technological shift allows for dynamic adjustments on the fly, reducing mechanical wear and lowering machine downtime by an estimated 30% compared to pneumatic or purely mechanical predecessors.
Servo-driven transfer arms provide precise deceleration and acceleration profiles. This intelligent motion control ensures that the high-carbon steel springs are not distorted or stretched during transit, preserving the exact geometric specifications required for flawless downstream assembly.
Which operating definitions should be clarified before specifyin
Before specifying new equipment, engineers must clarify several operating definitions to ensure compatibility across the production floor. The transfer line specifically refers to the automation bridge between the primary wire coiler and the secondary assembler or knotting machine, distinct from the coilers themselves.
Technical specifications must account for wire gauges typically ranging from 1.9mm to 2.4mm, and spring head diameters varying between 65mm and 90mm. Defining these geometric constraints and transfer pitch requirements upfront prevents costly integration failures and mechanical jamming during the initial commissioning phase.

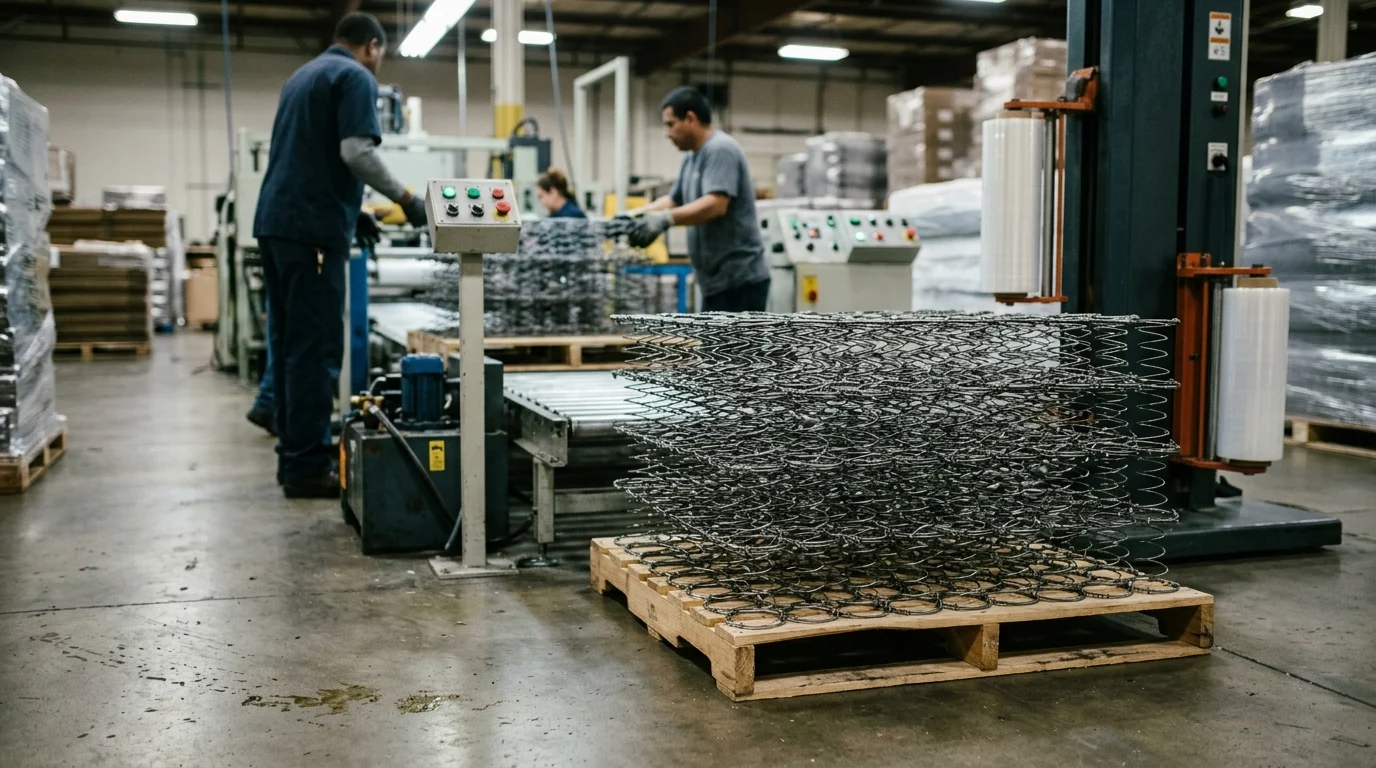

Which Technical Specifications Matter Most in a Next-Generation Bonnell
Evaluating a new Bonnell Spring Transfer Line requires a rigorous analysis of technical specifications. Plant managers must look beyond basic output claims and examine the underlying control architectures, mechanical tolerances, and sensor integrations that guarantee sustained performance over a multi-shift operation. High-performance models like the SX-200s Automatic Spring line demonstrate how modern engineering achieves these tighter operational tolerances.
How should manufacturers evaluate transfer speed
Transfer speed is the most visible metric, but it must be evaluated alongside sustained yield. While modern lines can achieve speeds of 120 to 150 springs per minute, the critical factor is the cycle time stability, which should remain under 0.5 seconds per transfer without inducing spring vibration.
Manufacturers must request empirical data on the continuous operating speed across a standard 8-hour shift, rather than relying solely on theoretical maximum burst speeds. A system that runs consistently at 130 springs per minute with zero faults yields higher daily output than one peaking at 150 but suffering from frequent micro-stoppages.
What automation, servo control, sensor
Automation in contemporary transfer lines relies heavily on closed-loop servo control, utilizing 4-axis or 6-axis robotic principles to manipulate the springs. High-resolution encoders provide real-time feedback to the PLC, allowing the machine to auto-correct positional deviations down to a ±0.5mm tolerance.
Furthermore, infrared and laser sensors are deployed along the transfer path to detect missing or deformed springs instantly. Upon detection, the system automatically rejects the faulty unit without stopping the line, actively reducing downstream knotting defect rates to below 0.05%.
Which comparison table should benchmark legacy transfer systems
To fully grasp the technological leap, benchmarking legacy mechanical systems against next-generation servo-driven lines is essential. The following comparison highlights the quantitative differences in performance and operational metrics.
| Specification | Legacy Mechanical Transfer | Next-Generation Servo Transfer |
|---|---|---|
| Maximum Speed | 60 - 80 springs/min | 120 - 150 springs/min |
| Positional Accuracy | ± 3.0 mm | ± 0.5 mm |
| Defect Rate | 1.5% - 2.0% | < 0.05% |
| Changeover Time | 45 - 60 minutes | 5 - 10 minutes (HMI driven) |
| Power Consumption | 18 kW (Continuous load) | 12 kW (Variable load) |
How Does a Bonnell Spring Transfer Line Upgrade Change Production
Implementing a sophisticated transfer line fundamentally alters the dynamics of the production floor. By removing the mechanical constraints of older machinery, facilities often see their Overall Equipment Effectiveness (OEE) jump from a stagnant 65% to well over 85%, transforming raw wire into finished innerspring units with unprecedented fluidity.
Where do transfer accuracy, wire consistency
Transfer accuracy directly impacts wire consistency and the structural integrity of the final mattress. When a spring is transferred with a ±1mm tolerance, it enters the knotting phase perfectly aligned, preventing micro-fractures and stress points in the high-carbon steel wire.
This consistency ensures that wire with a tensile strength of 1500 to 1800 N/mm² maintains its load-bearing properties. By eliminating rough handling during transfer, the inherent temper of the wire is preserved, ultimately extending the lifecycle of the mattress and preventing premature sagging.
How should the upgraded line integrate with coiling, knotting
Upgraded lines must seamlessly integrate with upstream coilers and downstream assemblers using synchronized conveyor protocols. Modern transfer units act as intelligent buffers, utilizing variable frequency drives (VFDs) to match the exact pitch and speed of adjacent machinery.
Many advanced systems feature an accumulator zone capable of holding 15 to 30 springs. This buffering capacity allows the coiler to continue running briefly if the assembler encounters a momentary jam, effectively decoupling the immediate hard-stop dependencies that plague rigid legacy lines.
What practical implementation steps reduce downtime during a mat
Practical implementation requires meticulous planning to minimize factory downtime during the changeover. Manufacturers should demand comprehensive Site Acceptance Testing (SAT) and a phased installation plan from their equipment vendor.
A well-executed upgrade can typically be completed within a 48 to 72-hour window. This rapid deployment is only possible if electrical drops, pneumatic lines operating at 0.6-0.8 MPa, and floor anchoring points have been pre-staged according to the manufacturer's foundational blueprints.
What Cost, Sourcing, and Compliance Factors Should Guide Bonnell Spring
Capital allocation for industrial machinery demands a comprehensive analysis of cost, global sourcing logistics, and strict regulatory compliance. Upgrading spring manufacturing equipment is a significant capital expenditure, typically ranging from $50,000 to $150,000 depending on the line's automation complexity, sensor array, and integration requirements.
How should buyers compare capital cost, lifecycle maintenance
Buyers must evaluate the Total Cost of Ownership (TCO) rather than just the initial sticker price. Next-generation machines often utilize high-efficiency motors that reduce electrical consumption by 15% to 20%, dropping a standard 18kW draw down to an optimized 12kW variable load.
Furthermore, the elimination of complex mechanical cams and pneumatic cylinders reduces annual maintenance, replacement parts, and lubrication costs by an average of $10,000. These operational savings significantly alter the lifecycle financial modeling, making the higher initial capital cost much easier to justify.
Which supplier evaluation criteria help verify machine reliabili
Evaluating suppliers requires verifying empirical reliability metrics and post-installation support infrastructure. Procurement teams should mandate a Mean Time Between Failures (MTBF) exceeding 5,000 hours and verify that the facility holds active ISO 9001 manufacturing certifications.
Additionally, the supplier must guarantee spare parts availability for a minimum of 10 years. Ensuring that proprietary servo motors, localized HMI screens, or specific PLC modules do not become obsolete is critical to preventing the entire production line from becoming inoperable due to a single component failure.
What safety, electrical
Compliance with international safety and electrical standards is non-negotiable for modern manufacturing facilities. Upgraded lines must feature CE marking for European markets or UL-listed electrical panels to satisfy North American insurance and operational requirements.
Occupational safety is also drastically improved with modern equipment. Acoustic enclosures reduce operational noise from a deafening 95 dB down to a manageable 80 dB, while interlocking safety doors immediately cut power within 100 milliseconds if breached, ensuring strict OSHA compliance and protecting floor operators.
How Should Manufacturers Decide Whether a New Bonnell Spring Transfer
Deciding when and how to deploy new transfer technology dictates a factory's competitive trajectory. Production managers and financial officers must collaborate to build a robust decision framework that balances immediate capital constraints against long-term throughput requirements and market demands.
Which return-on-investment model should compare output gains
A comprehensive Return on Investment (ROI) model must capture both direct output gains and indirect cost savings. Facilities upgrading from 80 to 140 springs per minute often achieve payback periods between 14 and 24 months. The table below illustrates a typical operational savings model for a mid-sized facility operating two shifts.
| ROI Metric | Legacy System Baseline | Upgraded Servo System | Annual Financial Impact |
|---|---|---|---|
| Output per Shift | 35,000 springs | 65,000 springs | +85% Revenue Potential |
| Scrap/Defect Cost | $15,000 / year | $1,500 / year | $13,500 Savings |
| Maintenance OPEX | $22,000 / year | $8,000 / year | $14,000 Savings |
| Energy Cost | $18,500 / year | $14,800 / year | $3,700 Savings |
When is a full Bonnell Spring Transfer Line replacement
Determining whether to pursue a full replacement or a partial retrofit depends heavily on the age, condition, and digital compatibility of the primary coiler. If the existing coiler is under five years old and capable of high-speed output, retrofitting a modern transfer arm mechanism and updating the PLC may suffice.
However, if the entire line exceeds 10 years of continuous operation, full replacement is strongly advised. Pairing a high-speed next-generation transfer line with an aging coiler often causes older mechanical failures to bottleneck the new module, resulting in system faults and causing overall scrap rates to exceed 15%.
What final decision framework helps align transfer technology wi
The final decision framework must align the chosen transfer technology with the company's broader product roadmap. If future mattress designs require complex zoned innersprings with varying wire gauges and heights, the transfer line must possess the programmable flexibility to switch parameters instantly via the HMI.
Ultimately, investing in next-generation transfer capabilities transitions a facility from reactive maintenance to proactive, high-yield manufacturing. By securing tight tolerances, reducing energy consumption, and maximizing throughput, mattress manufacturers can maintain a dominant, cost-effective position in the highly competitive global bedding supply chain.
Key Takeaways
- Compare sustained 8-hour operating speed, not just peak output, because a stable 130 springs per minute can outperform a faster line with frequent stoppages.
- Prioritize servo-driven and PLC-controlled transfer systems to reduce mechanical wear and improve motion accuracy during high-speed spring handling.
- Verify wire gauges from 1.9mm to 2.4mm and spring head diameters from 65mm to 90mm before specifying equipment to avoid integration issues.
- Use modern transfer technology to close the gap between coilers and assemblers, especially when legacy lines are limited to 60 to 80 springs per minute.
- Evaluate sensor integration and closed-loop control features because they help prevent spring distortion, jamming, and material starvation during production.
Frequently Asked Questions
Why should a mattress factory upgrade its Bonnell spring transfer line?
Upgrading removes bottlenecks between coilers and assemblers, reduces labor dependency, and helps modern equipment run closer to its true capacity.
How fast are modern Bonnell spring transfer lines?
Next-generation systems can typically reach 120 to 150 springs per minute, compared with about 60 to 80 springs per minute for many legacy mechanical lines.
What role do servo motors play in transfer technology?
Servo motors enable controlled acceleration, deceleration, and positioning, helping transfer springs smoothly without stretching, distortion, or frequent mechanical wear.
Which specifications should be confirmed before purchasing a new line?
Confirm wire gauge, spring head diameter, transfer pitch, downstream machine compatibility, operating speed, sensor setup, and control architecture before commissioning.
Is maximum speed the most important performance metric?
No. Sustained output over an 8-hour shift is more important than a short burst speed because micro-stoppages can reduce total daily production.
