Custom Pocket Spring Solutions: Tailoring Transfer Lines to Unique Production Needs

For mattress manufacturers, the difference between an efficient plant and a constrained one often lies in how smoothly springs move from wire to finished core. A modern pocket spring transfer line is no longer just a conveyor between machines; it is a synchronized production architecture that shapes throughput, labor cost, SKU flexibility, and product quality. As demand grows for zoned comfort, varied firmness levels, and faster changeovers, standard equipment can become a bottleneck. This article examines how customized transfer lines help manufacturers handle different wire gauges, coil heights, bonding methods, and automation requirements while supporting higher output, lower waste, and more distinctive mattress designs.

Strategic Value of a Custom Pocket Spring Transfer Line

In the highly competitive landscape of modern mattress manufacturing, operational efficiency and product differentiation are inextricably linked. The transition from raw steel wire to a finished, zoned mattress core requires seamless synchronization across multiple complex mechanical processes. For high-volume producers, achieving this synchronization relies heavily on the architecture of their production infrastructure.

A customized approach to spring assembly not only eliminates production bottlenecks but also enables manufacturers to execute proprietary mattress designs that standard machinery cannot accommodate. By strategically tailoring the transfer line to unique production needs, facilities can dramatically reduce labor dependencies, minimize material waste, and increase overall throughput, directly impacting the bottom line.

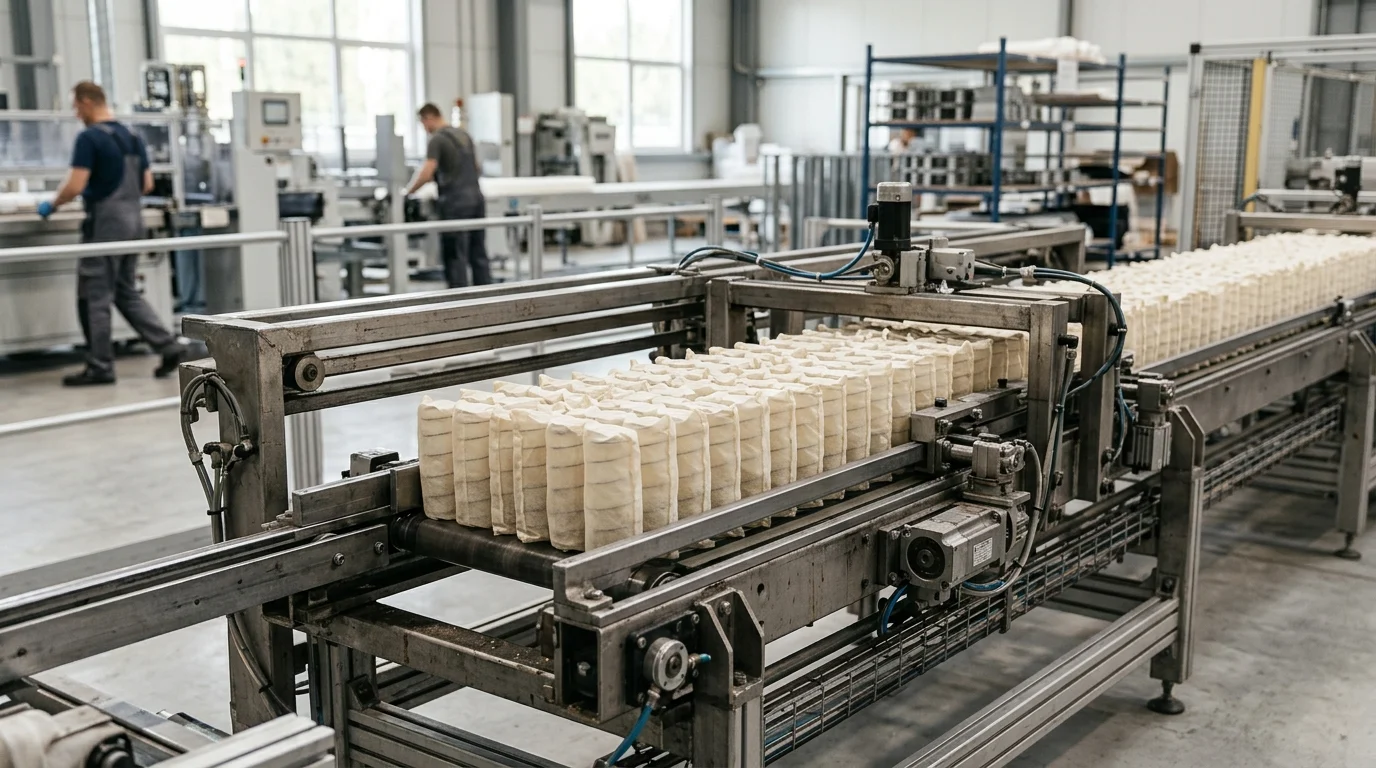

Defining a Pocket Spring Transfer Line

At its core, a Pocket Spring Transfer Line is an integrated manufacturing system designed to automate the progression of mattress springs from the coiling phase through to final core assembly. Unlike isolated machines that require manual intervention to move batches of pocketed springs from a coiler to an assembler, a transfer line utilizes automated conveyors, robotic handlers, and synchronized servo motors to maintain a continuous flow of materials.

This continuous flow encompasses wire forming, heat treatment, ultrasonic sealing into non-woven fabric, and the subsequent collation and bonding of spring strings into a complete unit. By eliminating the intermediate buffering and manual handling of spring strings, a well-engineered transfer line can consistently achieve throughput rates of 80 to 150 springs per minute per coiling head, depending on the specific wire gauge and coil geometry.

How Customization Supports Production Goals

Standardized machinery often forces manufacturers to compromise on product design, limiting them to uniform spring tensions or basic parallel assembly patterns. Customization of the transfer line directly supports advanced production goals by enabling dynamic adjustments on the fly. For instance, a facility aiming to produce ergonomically zoned mattresses requires a transfer line capable of seamlessly alternating between different wire gauges—typically ranging from 1.2mm to 2.4mm—without necessitating manual machine stops.

Furthermore, custom lines can be engineered to handle varying coil heights, from low-profile micro-coils measuring 25mm to standard support coils up to 250mm. This flexibility allows a single continuous production line to shift from manufacturing ultra-plush premium units to firm orthopedic models within a single shift. By aligning the mechanical capabilities of the transfer line with the specific SKU demands of the facility, manufacturers can achieve an Overall Equipment Effectiveness (OEE) exceeding 85%, significantly outperforming rigid, off-the-shelf alternatives.

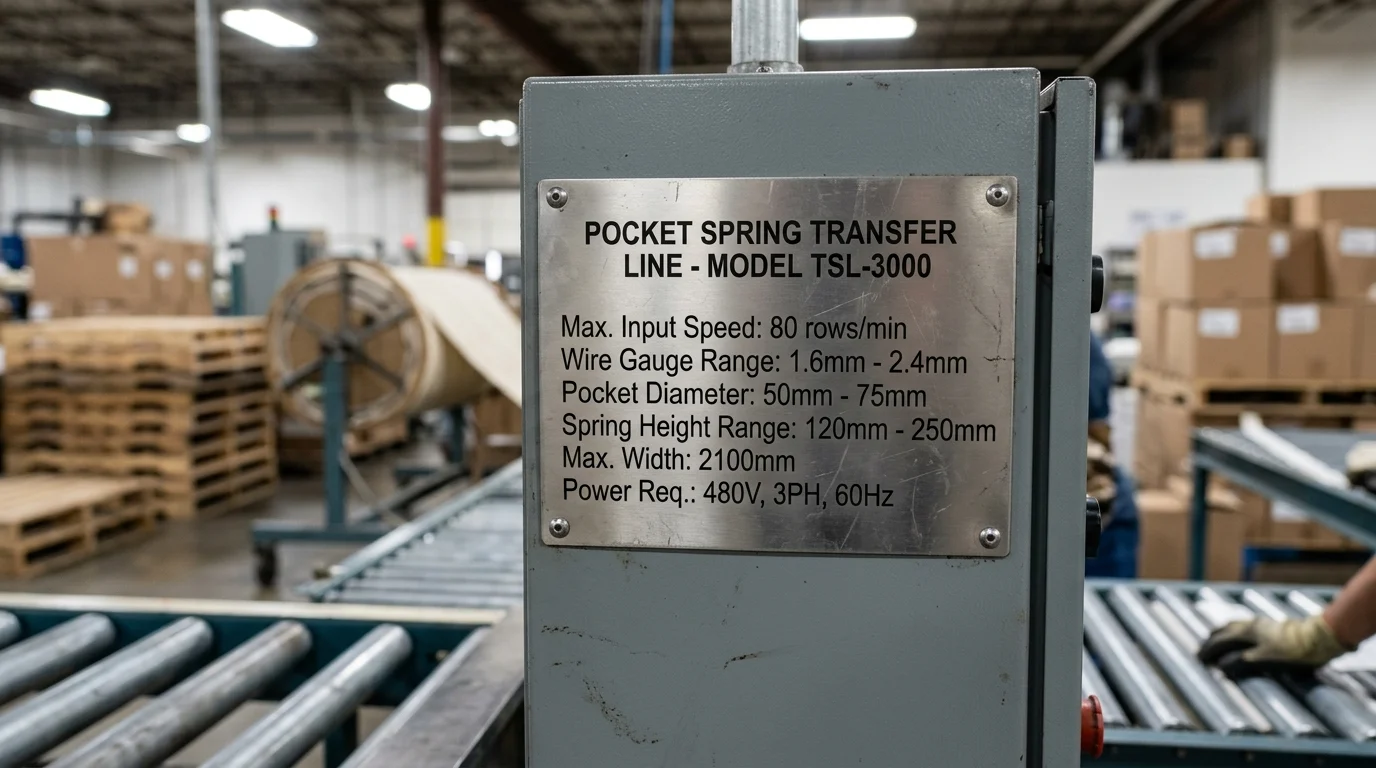

Key Technical Specifications

The operational efficiency and end-product quality of any bedding facility rely heavily on the underlying technical specifications of its machinery. Evaluating a transfer line requires a deep dive into its mechanical tolerances, assembly methodology, and digital control architecture. These technical parameters ultimately dictate the line's ability to maintain high yield rates while minimizing raw material consumption.

Spring Parameters and Fabric Requirements

A robust transfer line must accommodate a wide spectrum of physical spring parameters. The coiling units must precisely manipulate high-carbon steel wire to form cylindrical, barrel, or dual-stage coil shapes while maintaining strict dimensional tolerances. Variations in spring diameter, typically ranging from 40mm to 75mm, must be tightly controlled to ensure uniform compression characteristics across the finished mattress core.

Equally critical are the fabric requirements. The pocketing phase relies on non-woven polypropylene fabric, generally specifying a density between 60 and 100 grams per square meter (gsm). The transfer line's ultrasonic welding horns must be precisely calibrated to bond these specific fabric weights without burning the material or leaving weak seams. Tension control systems within the fabric feed are essential; even a 2% deviation in fabric tension can lead to misaligned pockets, causing downstream assembly jams and increasing scrap rates.

Glue, Welding, Cutting, Zoning, and Assembly Systems

The joining of individual pocket springs into a cohesive mattress core traditionally relied on hot-melt adhesives. However, modern environmental standards and consumer preferences for eco-friendly products have driven innovation in assembly systems. Next-generation equipment, such as the SX-NG Non-glue pocket spring assembly technology, utilizes advanced ultrasonic welding to fuse the non-woven fabric of adjacent spring strings together, entirely eliminating the need for chemical adhesives.

This shift not only improves the recyclability of the mattress but also removes approximately 1.5kg to 2.0kg of hot-melt glue per king-size mattress, significantly reducing direct material costs. Beyond bonding, custom lines integrate automated cutting systems capable of slicing continuous spring strings to exact lengths, and zoning modules that arrange strings of varying firmness into 3, 5, or 7 distinct ergonomic zones. The precision of these cutting and assembly modules directly impacts the structural integrity and dimensional accuracy of the final unit.

Automation, Servo Control, and Data Collection

Modern pocket spring lines are heavily reliant on multi-axis servo control to achieve synchronization across dozens of moving parts. A high-capacity transfer line may incorporate upwards of 20 independent servo motors, communicating via high-speed industrial Ethernet protocols such as EtherCAT or PROFINET. This architecture ensures sub-millisecond response times, allowing the assembly head to perfectly track the continuous motion of the incoming spring strings.

Data collection is another critical specification. Integrated PLCs (Programmable Logic Controllers) equipped with edge computing capabilities continuously monitor parameters such as wire feed rates, ultrasonic generator frequencies, and motor torque. By aggregating this telemetry, the system can predict component wear and trigger preventative maintenance alerts before a catastrophic failure occurs. The integration of these advanced control systems allows the line to maintain high-speed assembly cycles of up to 150 rows per minute while feeding real-time production analytics directly to the facility's ERP system.

Comparing Transfer Line Configurations

Determining the optimal architecture for a spring assembly facility requires a comparative analysis of available transfer line configurations. The degree of automation integrated into the line fundamentally alters the operational dynamics of the factory floor, shifting the balance between initial capital expenditure, ongoing labor costs, and production flexibility.

Manual, Semi-Automatic, and Fully Automatic Options

Manufacturers generally choose between manual, semi-automatic, and fully automatic transfer configurations. Manual systems, largely considered legacy technology in high-volume markets, require operators to physically transport bins of coiled springs to standalone assembly machines. Semi-automatic configurations bridge the gap by utilizing conveyors to move materials, but still rely on human operators to guide spring strings into the assembly jaws or to manage complex zoning changes.

Fully automatic transfer lines represent the pinnacle of modern production. In these configurations, raw steel wire and rolls of non-woven fabric enter the system, and completed, zoned mattress cores exit the line without direct human intervention. Robotic gantries handle the transfer of strings from multiple coiling heads into a centralized accumulator, which feeds directly into the automated assembly and cutting modules.

Throughput, Changeover Time, Labor, and Scrap Rates

Quantitative metrics provide the clearest distinction between these configurations. A fully automated transfer line can reduce the labor requirement from five operators down to a single supervisory technician per shift. Furthermore, automation drastically improves material efficiency; precision servo controls can reduce scrap rates from an industry average of 3% in semi-automatic setups to less than 0.5% in fully automated lines.

Changeover time—the duration required to switch production from one mattress specification to another—is another critical differentiator. Advanced fully automatic lines utilize recipe-driven software to adjust guide rails, cut lengths, and zoning patterns automatically, achieving changeovers in under 10 minutes. Conversely, semi-automatic lines requiring manual mechanical adjustments may suffer from downtime exceeding 45 minutes per changeover, severely bottlenecking high-mix, low-volume production schedules.

Where Custom Production Lines Add Value

The premium paid for custom fully automatic production lines is justified when standard configurations fail to support proprietary mattress designs. Facilities producing high-density micro-coil sheets, which may contain over 2,000 individual coils per king-size unit, require specialized transfer mechanisms to prevent the delicate springs from tangling or collapsing during assembly.

Additionally, custom lines add immense value when implementing complex nested assembly patterns. Unlike standard parallel rows, nested configurations offset alternating rows to eliminate void spaces between springs, increasing the overall coil count and firmness of the mattress. Tailoring the transfer line's software and mechanical pushers to reliably execute these nested patterns at high speeds gives manufacturers a distinct structural advantage in the premium bedding market.

Sourcing, Installation, and Compliance

Procuring heavy industrial machinery involves complex logistical, operational, and regulatory considerations. The success of deploying a custom pocket spring transfer line depends not only on the engineering phase but also on rigorous supplier vetting, structured testing protocols, and meticulous facility preparation.

Qualifying Pocket Spring Transfer Line Suppliers

The first step in mitigating capital expenditure risk is rigorous supplier qualification. Original Equipment Manufacturers (OEMs) must be evaluated on their engineering pedigree, post-sale support infrastructure, and adherence to international manufacturing standards. A qualified supplier should possess ISO 9001 certification for quality management and ensure all machinery carries the appropriate CE marking or UL listing, depending on the destination region.

Technical capabilities must also be heavily scrutinized. Prospective buyers should demand documented Mean Time Between Failures (MTBF) data, targeting a minimum threshold of 5,000 operational hours for critical sub-assemblies like the coiling heads and ultrasonic generators. Furthermore, assessing the supplier's supply chain for replacement parts—specifically checking if they utilize globally available, standardized components (e.g., SMC pneumatics, SKF bearings) rather than proprietary, hard-to-source parts—is vital for ensuring long-term operational uptime.

Factory Acceptance, Site Acceptance, and Training

Validation of the equipment occurs through structured Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT). The FAT takes place at the supplier's facility and should involve a rigorous protocol, including a 48 to 72-hour continuous run test using the buyer's exact specifications of wire and fabric. During this phase, performance metrics must be strictly enforced, demanding a minimum yield rate of 98% and verifying that cycle times meet the contractual obligations.

Following successful delivery, the SAT is conducted on the buyer's factory floor. This phase ensures that the equipment has not been compromised during transit and integrates seamlessly with the facility's existing upstream and downstream processes. Concurrent with the SAT, comprehensive operator and maintenance training must be executed. Empowering the internal maintenance team with deep troubleshooting knowledge is critical for maintaining the tight OEE targets established during the procurement phase.

Plant Layout, Safety, and Utility Requirements

Physical installation demands precise facility planning to accommodate the substantial footprint and utility requirements of a continuous transfer line. A fully integrated system, comprising multiple coilers, transfer conveyors, and assembly modules, typically requires a linear floor space ranging from 15 to 25 meters in length and 5 to 8 meters in width. Structural engineers must verify that the concrete slab can support the dynamic loads and vibrational forces generated by high-speed coiling.

Utility drops must be engineered to exact specifications. A standard high-capacity line will draw significant electrical power, frequently requiring a dedicated 3-phase, 380V/50Hz supply capable of handling a continuous load of 50kW to 80kW. Additionally, the pneumatic systems driving the transfer gates and cutting mechanisms require a clean, dry compressed air supply, strictly regulated between 0.6 and 0.8 MPa. Failure to provide stable utilities will result in erratic servo behavior, weak ultrasonic welds, and frequent machine faults.

Selecting the Right Pocket Spring Transfer Line

The final phase of integrating a new transfer line involves synthesizing technical, operational, and financial data to make an informed procurement decision. Selecting the appropriate machinery is an exercise in balancing immediate manufacturing needs with long-term strategic growth, ensuring the chosen system can adapt to future market demands.

Decision Matrix for Line Selection

A formalized decision matrix helps procurement and engineering teams objectively evaluate competing proposals. This matrix should weight criteria based on the facility's specific bottlenecks. For a factory struggling with labor shortages, the weighting for "Automation Level" and "Ease of Operation" will be paramount. Conversely, a facility focused on expanding its product catalog will heavily weight "Changeover Speed" and "Zoning Flexibility."

Key quantitative inputs for this matrix include the total required floor space, the guaranteed maximum scrap rate, and the estimated annual maintenance costs. By assigning numerical scores to these parameters across different OEMs, management can strip away marketing claims and identify the transfer line configuration that offers the highest statistical probability of meeting their specific production targets.

Balancing Custom Engineering, Cost, and ROI

Striking the optimal balance between bespoke engineering and total capital expenditure requires comprehensive lifecycle cost analysis. A highly customized, fully automated transfer line represents a significant investment, with Capital Expenditure (CAPEX) typically ranging from $500,000 to over $1.5 million depending on the number of coiling heads and advanced assembly features selected.

However, the Return on Investment (ROI) must be calculated not just on the initial purchase price, but on Total Cost of Ownership (TCO) over an expected 10-to-15-year operational lifespan. When factoring in the reduction of direct labor, the minimization of raw material waste (especially through non-glue assembly methods), and the ability to command higher margins on complex, multi-zone premium mattresses, a well-specified custom line often yields a payback period of 18 to 28 months. Ultimately, investing in the precise level of customization required for the facility's unique product mix ensures a resilient, highly profitable manufacturing operation.

Key Takeaways

• Evaluate a pocket spring transfer line by how well it synchronizes coiling, heat treatment, sealing, conveying, and final core assembly.
• Specify supported wire gauges early, especially if your product range requires dynamic changes between approximately 1.2mm and 2.4mm wire.
• Match the line configuration to your coil height range, from 25mm micro-coils to 250mm support coils, to avoid limiting future SKU development.
• Use customized transfer automation to reduce manual handling between coiling and assembly, which helps lower labor dependency and production bottlenecks.
• Target an Overall Equipment Effectiveness above 85% by aligning servo control, assembly logic, and material handling with real production demand.
• Plan for throughput based on spring geometry and wire gauge, since optimized systems can reach roughly 80 to 150 springs per minute per coiling head.

Frequently Asked Questions

What is a pocket spring transfer line?

A pocket spring transfer line is an integrated system that automates spring coiling, fabric pocketing, sealing, conveying, and core assembly, reducing manual handling between machines.

Why customize a pocket spring transfer line?

Customization helps match machinery to specific mattress SKUs, zoning designs, spring sizes, wire gauges, and production volumes, improving efficiency and product differentiation.

What throughput can a transfer line achieve?

Depending on wire gauge, coil geometry, and machine configuration, a well-engineered line can reach about 80 to 150 springs per minute per coiling head.

Can one line produce different mattress firmness zones?

Yes. A custom line can be configured to alternate wire gauges and coil specifications, enabling ergonomic zoning without frequent manual stops.

What spring sizes can customized systems support?

Custom transfer lines can support a broad range, from micro-coils around 25mm high to standard support coils up to approximately 250mm.
