Introduction
As mattress factories push for higher output and more consistent quality, the transfer stage between spring coiling and assembly has become a critical point of improvement. A pocket spring transfer line addresses this gap by automating how spring strings move, align, and feed into downstream processes, reducing manual handling and production delays. This article explains how the system supports continuous flow manufacturing, where efficiency gains typically come from, and what operational benefits manufacturers can expect in terms of throughput, labor use, and process stability. With that context, it becomes easier to evaluate why transfer line automation is increasingly central to modern pocket spring production.
How Can a Pocket Spring Transfer Line Improve Mattress Production
Mattress manufacturing has evolved significantly, transitioning from labor-intensive manual assembly to highly automated continuous flow production. The integration of a Pocket Spring Transfer Line acts as a critical bridge in this evolution, eliminating the traditional bottlenecks found between wire coiling and final spring unit assembly. By automating the conveyance of individual spring strings to the gluing and assembly stations, facilities can achieve a seamless production rhythm.

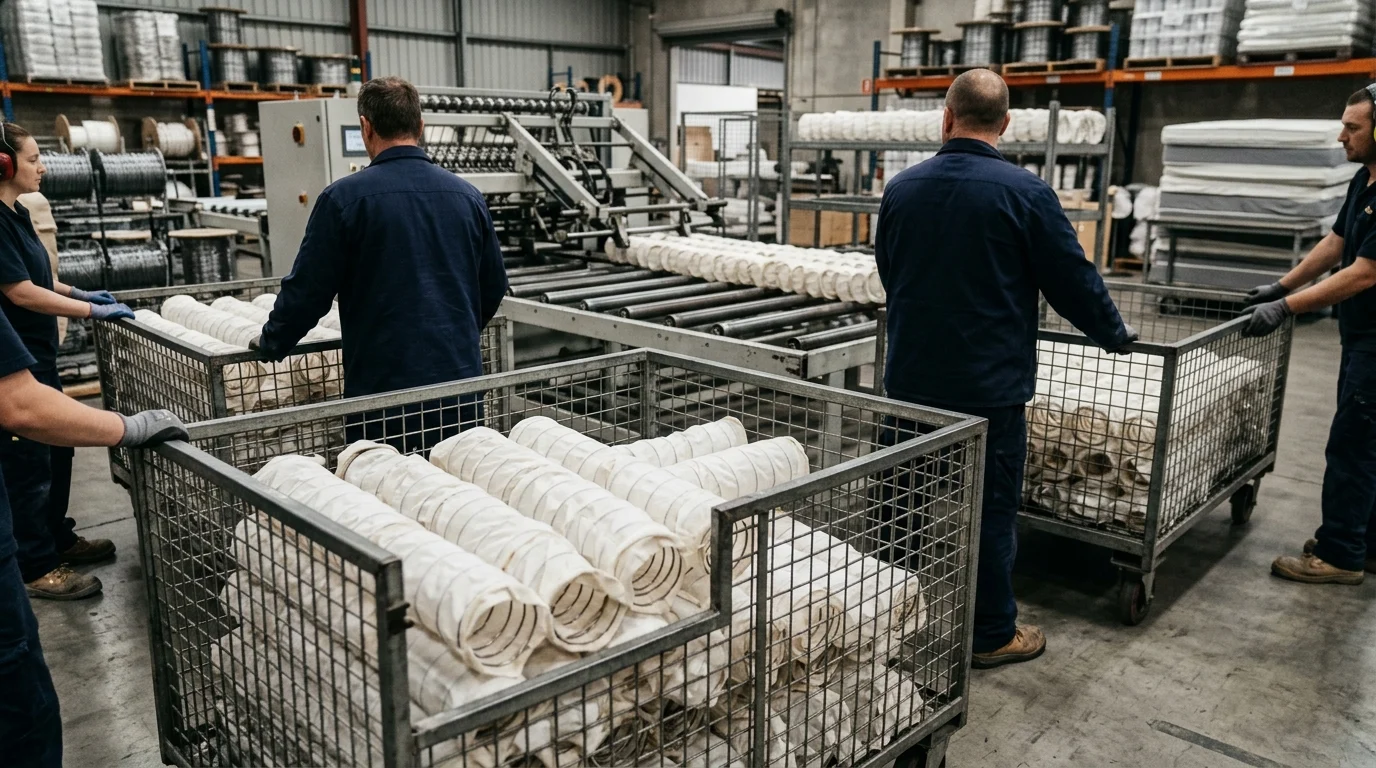

Historically, moving pocketed springs from the coiler to the assembler required operators to manually cut, stack, and transport coils. This disconnected workflow frequently resulted in tangled springs, inconsistent tension, and unpredictable cycle times. Implementing an automated transfer line resolves these inefficiencies by synchronizing the output of multiple coiling machines with the intake capacity of the assembly unit, creating a balanced, high-throughput manufacturing environment.
Why are manufacturers investing in pocket spring transfer lines
The primary catalyst for capital investment in automated transfer infrastructure is the aggressive reduction of non-value-added labor. In a traditional setup, manual handling accounts for a significant portion of the production timeline. By implementing a Transfer Line, manufacturers can reduce manual handling interventions by up to 80%.
Furthermore, automated lines dramatically compress cycle times. Facilities report that the time required to transfer and align a standard queen-size spring batch drops from an average of 45 seconds under manual operation to a consistent 12 seconds when automated. This predictability allows plant managers to schedule production runs with tighter tolerances and significantly reduces the accumulation of work-in-progress (WIP) inventory on the factory floor.
Which production pressures drive adoption
Several macroeconomic and industry-specific pressures are accelerating the adoption of this technology. Rising labor costs, which frequently range from $18 to $25 per hour for skilled assembly workers in developed markets, make minimizing headcount a strategic imperative. Additionally, high turnover rates in physically demanding roles force companies to seek automated alternatives to maintain output stability.
Consumer demand for complex, multi-zoned mattresses also drives equipment upgrades. Modern mattress designs frequently incorporate three, five, or seven distinct zones of varying coil tensions. Manually sorting and feeding these specific spring strings in the correct sequence is highly susceptible to human error. An automated transfer system precisely manages the sequencing of different coil gauges, ensuring that complex zoned units are assembled with zero defect tolerance at speeds exceeding 1,000 units per shift.
What Is a Pocket Spring Transfer Line and How Do
At its core, a Pocket Spring Transfer Line is a sophisticated material handling system engineered specifically for the physical characteristics of non-woven fabric-encased coils. It serves as the central nervous system of the spring department, communicating simultaneously with upstream coilers and downstream assemblers to regulate material flow and prevent machine idling.
How does a pocket spring transfer line connect spring
assembly processes

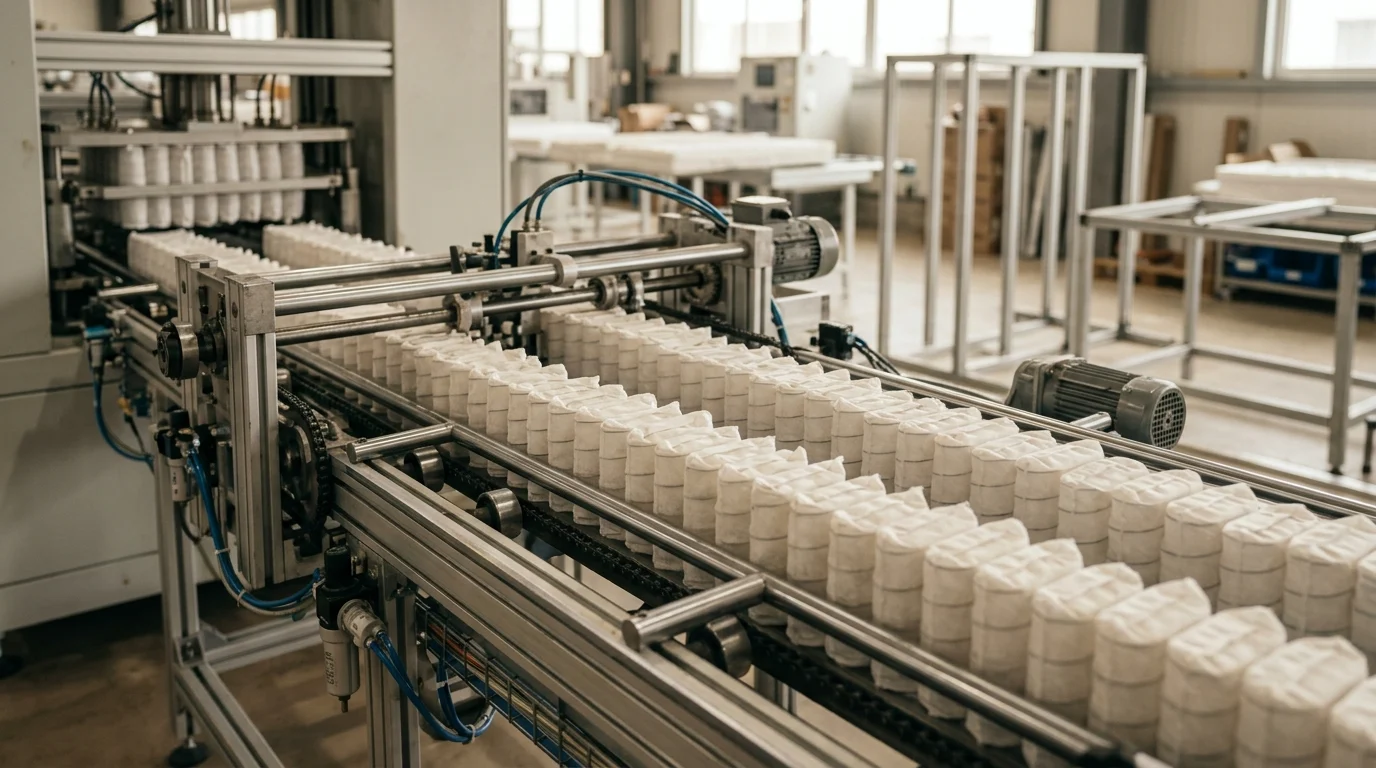

The transfer process begins the moment a string of pocketed springs exits the ultrasonic welding station of the coiler. Instead of pooling in a collection bin, the string is immediately engaged by motorized nip rollers and guided onto an overhead or floor-level conveyor track. Advanced lines utilize tension-control accumulators—often referred to as buffer zones—that absorb temporary speed disparities between the coiler and the assembler.
Once the string reaches the assembly station, precise servo-driven cutting mechanisms sever the fabric at exact intervals based on the mattress dimensions. The transfer line then feeds the cut string directly into the assembler's indexing mechanism, where hot melt adhesive is applied before the next string is compressed against it. This continuous mechanical handshake ensures the springs remain oriented correctly, preserving the structural integrity of the final unit.
Which specifications should buyers compare
When evaluating different models, plant engineers must scrutinize several technical specifications that dictate the machine's operational ceiling. The most critical metric is the transfer speed, typically measured in strings per minute (SPM) or coils per minute. Standard entry-level lines handle approximately 60 to 80 SPM, whereas high-performance servo-driven models can exceed 120 SPM, matching the output of the fastest modern coilers.
Another vital specification is the system's spatial footprint. Factory floor space is a premium asset, and transfer lines must be integrated into existing layouts. Buyers should compare the minimum turning radius of the conveyor tracks and the total linear dimensions required. A standard linear configuration may require a footprint of 15 meters by 5 meters, whereas modular overhead systems can utilize vertical space to reduce the floor footprint by up to 40%.
What evaluation framework helps compare standard and advanced mo
dels
To navigate the diverse offerings in the market, manufacturers should employ a structured evaluation framework that juxtaposes standard mechanical models against advanced, software-integrated systems. This comparison should weigh upfront capital expenditure against long-term operational capabilities, particularly regarding flexibility for future product designs.
| Feature/Metric | Standard Transfer Line | Advanced Transfer Line |
|---|---|---|
| Drive Mechanism | Pneumatic / AC Induction Motors | Fully Servo-Driven Multi-Axis |
| Throughput Speed | 60 - 80 Strings Per Minute | 120+ Strings Per Minute |
| Zoning Capability | Manual changeover required | Automated, PLC-controlled sequencing |
| Buffer Capacity | Limited (1-2 strings) | High (Dynamic accumulation loops) |
| Data Integration | Basic HMI controls | SCADA / ERP compatible IoT sensors |
How Does a Pocket Spring Transfer Line Affect Throughput, Quality
The financial justification for upgrading to an automated Transfer Line rests on its measurable impact on three pillars: throughput volume, product quality, and operational cost. By stabilizing the volatile variable of human material handling, these systems introduce a level of mathematical predictability to mattress production economics.
Which efficiency gains are realistic
The most immediate efficiency gain realized post-installation is a dramatic increase in Overall Equipment Effectiveness (OEE). In traditional fragmented setups, coiling machines frequently pause while waiting for assemblers to clear backlogs, resulting in an average OEE of 60% to 65%. By implementing a continuous transfer system with active buffering, facilities routinely push their OEE above 85%.
In practical terms, this translates to massive capacity leaps. A medium-sized facility transitioning from manual transfer to an automated line can expect its daily output to jump from approximately 400 spring units per 8-hour shift to over 800 units, without adding a single coiling machine or assembly station. This doubling of throughput is achieved entirely by eliminating micro-stoppages and optimizing the utilization rate of existing capital equipment.
How does it improve process consistency and adhesive accuracy
Quality control in pocket spring assembly hinges largely on the geometric alignment of the coils and the precise application of hot melt adhesive. Manual feeding often introduces slight diagonal skews, leading to "parallelogram" defects where the spring unit fails to sit perfectly square. Automated transfer lines utilize rigid lateral guides and precise servo-indexing to ensure every string is fed at a perfect 90-degree angle.
Furthermore, this consistent feed rate optimizes the adhesive process. Because the assembler receives strings at a mathematically uniform speed, the glue extrusion nozzles can be calibrated to apply the exact minimal amount of adhesive required. Manufacturers frequently record a 15% to 20% reduction in glue consumption—dropping from an average of 150 grams per king-size unit to roughly 120 grams—while simultaneously improving the bond strength through better compression timing.
Which cost drivers should be analyzed
When analyzing the cost drivers associated with this technology, decision-makers must look beyond the initial purchase price. The capital expenditure (CapEx) for a complete transfer system typically ranges from $150,000 for standard linear configurations to upward of $350,000 for highly customized, multi-coiler routing systems with advanced zoning software.
However, the operational expenditures (OpEx) tell the true story of ROI. Key OpEx drivers include energy consumption, which averages between 5 kW and 12 kW depending on the number of servo motors, and routine maintenance of wear parts like conveyor belts and cutting blades. Conversely, the reduction in labor costs, decreased adhesive waste, and minimized scrap rates (often dropping below 0.5%) create a rapid payback period, offsetting the initial CapEx and ongoing OpEx.
What Should Manufacturers Review Before Selecting a Pocket Spring Transf
Selecting the optimal Pocket Spring conveyance system requires rigorous due diligence before signing a purchase order. Because this equipment integrates deeply with upstream and downstream machinery, a mismatch in specifications or supplier support can cause cascading failures across the entire production floor.
How should buyers assess supplier capability and customization s
upport
The technical capability of the supplier is just as important as the machinery itself. Buyers must assess the vendor's engineering portfolio, specifically their ability to customize the transfer line's gripping and cutting mechanisms to handle the specific wire gauges used by the facility. A robust line should comfortably process everything from ultra-flexible 1.2mm micro-coils to rigid 2.4mm heavy-duty support coils without requiring extensive mechanical adjustments.
Additionally, manufacturers should evaluate the supplier's post-installation support infrastructure. Critical metrics to request include the Mean Time Between Failures (MTBF) of their core servo components and their guaranteed lead times for replacement parts. Suppliers offering remote diagnostic capabilities via secure industrial VPNs provide a distinct advantage, allowing their engineers to troubleshoot PLC logic errors without requiring an on-site visit.
Which compliance, safety, layout, and logistics factors matter
Compliance and safety protocols are non-negotiable criteria. The equipment must adhere to regional electrical and safety standards, such as CE marking for Europe or UL certification for North America. Furthermore, to comply with OSHA (or equivalent) occupational safety standards, the line must feature comprehensive physical guarding, emergency stop interlocks, and operating noise levels consistently below the 80 dB threshold.
Logistics and layout planning dictate the physical feasibility of the project.
| Assessment Category | Key Criteria | Target Metric/Standard |
|---|---|---|
| Facility Layout | Clearance for conveyor routing | Minimum 1.5m aisle clearance |
| Power Infrastructure | Stable voltage supply | 380V/480V 3-Phase, ±5% variance |
| Pneumatic Supply | Clean, dry compressed air | 6 to 8 Bar constant pressure |
| Environmental | Ambient temperature control | 15°C to 40°C operating range |
What implementation steps support smooth integration
A successful deployment relies on a structured, multi-phase implementation plan. The process should begin with a Factory Acceptance Test (FAT) at the supplier's facility, where the line is run using the buyer's actual spring materials to verify cycle times and zoning accuracy before shipping.
Following delivery, the Site Acceptance Test (SAT) phase begins. A typical installation, integration, and operator training period spans 4 to 6 weeks. During this time, the supplier's technicians must calibrate the line's PLC to communicate seamlessly with the legacy coiling and assembly machines, ensuring all digital handshakes—such as speed synchronization and fault reporting—function flawlessly before full-scale production commences.
Which Decision Criteria Best Support Long-Term Pocket Spring Transfer Li
Procuring a Pocket Spring Transfer Line is not a short-term operational fix; it is a strategic capital investment with an expected lifecycle of 10 to 15 years. To maximize the return on this investment, facility leaders must evaluate decision criteria that align the machinery's capabilities with the company's long-term market strategy.
How can manufacturers match investment to product mix and
growth plans
The most critical alignment is matching the equipment's flexibility to the manufacturer's product mix. Facilities operating in a high-mix, low-volume environment—frequently switching between twin, queen, king, and custom RV sizes—require a transfer line capable of rapid, automated changeovers. In these scenarios, a system that can execute a recipe changeover via an HMI touchscreen in under 5 minutes is vastly superior to a rigid system requiring manual rail adjustments.
Conversely, manufacturers executing low-mix, high-volume production for major institutional contracts should prioritize raw throughput and durability over extreme flexibility. For these operations, investing in heavy-duty components and maximum SPM capacity ensures the line can withstand continuous 24/7 operation with minimal degradation, supporting aggressive volume growth plans.
What final criteria should decision-makers use
Ultimately, the decision should be governed by the Total Cost of Ownership (TCO) rather than the sticker price alone. Decision-makers must calculate the TCO by projecting the initial CapEx, installation costs, expected energy consumption, routine maintenance parts, and operator training against the anticipated labor savings and yield improvements over a 5-to-7-year horizon.
When properly specified and integrated, a high-quality transfer line routinely delivers a full Return on Investment (ROI) within 18 to 24 months. By prioritizing TCO, seamless digital integration, and scalable throughput capacity, mattress manufacturers can future-proof their assembly floors, ensuring they remain competitive in an industry increasingly defined by automation and precision.
Key Takeaways
- The most important conclusions and rationale for Pocket Spring Transfer Line
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What does a pocket spring transfer line do?
It automatically moves pocket spring strings from coilers to assembly stations, cutting manual transport and keeping springs aligned for continuous mattress production.
How much can a transfer line reduce manual handling?
Many manufacturers reduce manual handling by up to 80%, which lowers labor demand, operator fatigue, and transfer-related errors.
How does it improve production speed?
It synchronizes coilers and assemblers, cutting transfer and alignment time from about 45 seconds manually to roughly 12 seconds automatically.
Can a pocket spring transfer line support zoned mattress production?
Yes. It helps sequence different spring strings accurately, which is useful for three-, five-, or seven-zone mattress designs with tight quality requirements.
What should buyers compare before choosing a model?
Focus on transfer speed, buffer capacity, cutting precision, machine footprint, and whether the line matches your coiler and assembly unit output.
