Boost Efficiency with Advanced Pocket Spring Transfer Systems for Modern Mattress Factories

Mattress factories often invest heavily in high-speed Spring Machines, only to lose capacity during the transfer from spring assembly to downstream bonding, gluing, or encapsulation. That gap is whereautomated pocket spring transfer systems create measurable value. By replacing manual lifting, cart movement, and batch staging with synchronized conveyors and robotic handling, manufacturers can protect spring geometry, stabilize quality, and raise output per shift. This article examines how advanced transfer lines improve throughput, reduce labor dependency, minimize work-in-progress, and support more predictable factory performance. For plants facing rising labor costs, defect pressure, or floor-space constraints, transfer automation is no longer just an efficiency upgrade—it is a production strategy.

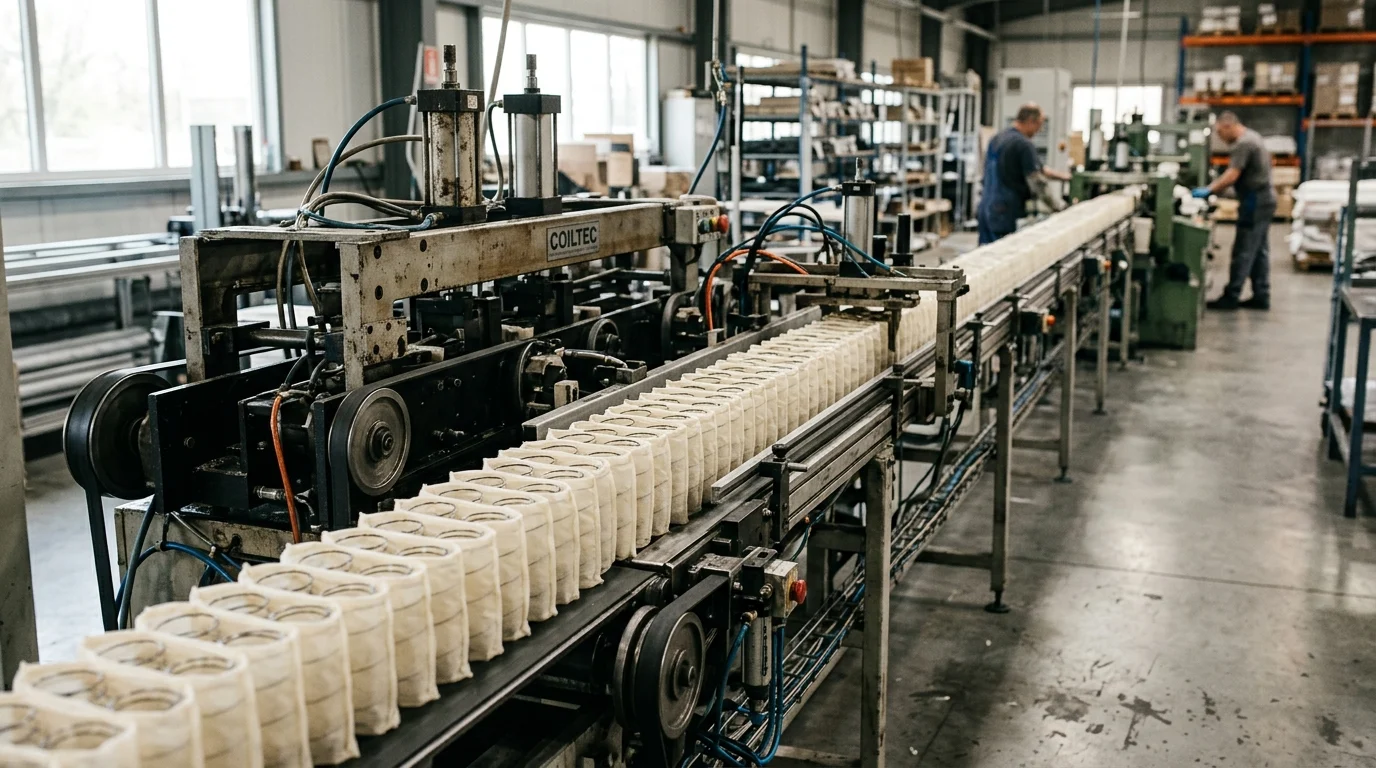

Strategic Value of a Pocket Spring Transfer Line

In modern mattress manufacturing, the transition from individual component fabrication to final assembly represents a critical production bottleneck. Historically, moving assembled spring units between the coiling stations, gluing or bonding machines, and final encapsulation required substantial manual labor. The introduction of an automated Pocket Spring Transfer Line fundamentally shifts this paradigm, converting a fragmented batch process into a continuous, high-velocity production flow.

The strategic deployment of these transfer systems goes beyond mere labor reduction; it addresses critical issues of material integrity, factory floor utilization, and overall equipment effectiveness (OEE). By eliminating the physical strain and inherent variability of manual handling, plant managers can achieve precise synchronization between spring assembly and subsequent mattress build processes, driving down cycle times and stabilizing quality metrics across high-volume production runs.

Why evaluate advanced transfer systems

Evaluating advanced transfer systems is imperative for facilities experiencing throughput ceilings due to intralogistics constraints. Manual handling of pocket spring units, which typically weigh between 15 and 25 kilograms depending on wire gauge and zone configuration, introduces high risks of operator fatigue and cumulative trauma disorders. Furthermore, manual transport frequently results in spring deformation or row misalignment, which can elevate downstream defect rates to unacceptable levels.

Advanced transfer lines mitigate these risks through precise, automated kinematics. By utilizing synchronized conveyor modules and robotic handling, these systems maintain the geometric integrity of the spring unit. Facilities evaluating these systems often identify a baseline scrap reduction of 12% to 18% directly attributable to the elimination of improper manual lifting and stacking techniques, making the technological upgrade a critical step for quality assurance.

How transfer lines improve throughput

Transfer lines improve throughput by establishing a deterministic, paced flow of materials that forces upstream and downstream equipment to operate at optimal utilization rates. A well-calibrated transfer system operates with cycle times as low as 25 to 30 seconds per king-size spring unit, effectively matching the output of high-speed pocket spring machines and preventing work-in-progress (WIP) accumulation.

To illustrate the impact on production capacity, consider the following performance metrics comparing different handling methodologies in a standard 8-hour shift environment:

By locking production to the automated transfer rate, factories eliminate the micro-stoppages associated with manual palletizing and staging. This continuous flow architecture ensures that high-value assembly machinery is never starved for input or blocked by output, thereby maximizing capital asset utilization.

When automation creates competitive advantage

Automation transitions from an operational upgrade to a distinct competitive advantage when a manufacturer scales production beyond 400 mattress units per day. At this threshold, the logistical complexity of managing raw materials, intermediate spring units, and finished goods demands a systemic approach. An automated transfer line allows a factory to confidently bid on high-volume contract manufacturing or retail orders with guaranteed lead times.

Moreover, the ability to seamlessly handle variable product dimensions—ranging from twin to California king—without requiring manual tooling changeovers provides immense agility. Manufacturers equipped with advanced transfer systems can execute mixed-model production schedules with zero sequence-dependent setup time, enabling just-in-time (JIT) manufacturing that dramatically reduces finished goods inventory and associated carrying costs.

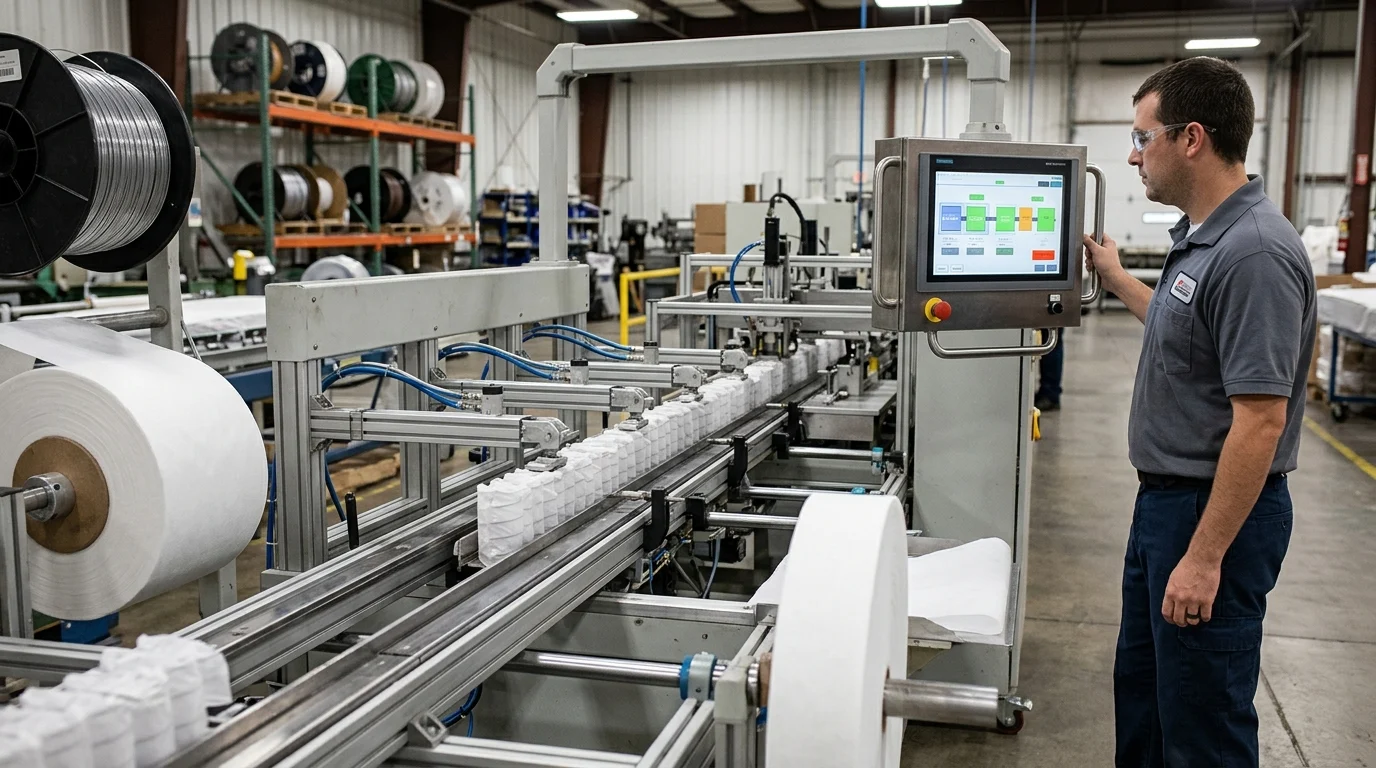

Core Modules and System Configuration

A robust pocket spring transfer line is not a monolithic piece of equipment but rather a highly modular system engineered to fit the specific spatial and operational constraints of a given facility. Understanding the core modules and how they interface with primary manufacturing equipment is essential for designing a layout that maximizes throughput while minimizing the total footprint.

Modern systems utilize a combination of mechanical, pneumatic, and electronic subsystems to orient, transport, and buffer spring units. The architectural flexibility of these systems allows plant engineers to bypass structural obstacles on the factory floor, route materials across different elevations, and seamlessly integrate quality control checkpoints without disrupting the primary flow of materials.

Main components of a modern transfer line

The anatomy of a modern transfer line consists of several distinct modules, each responsible for a specific phase of material handling. At the point of origin, infeed conveyors utilize high-friction, anti-static polyurethane belts to receive the freshly assembled spring units. Indexing stations follow, equipped with photoelectric sensors that verify the unit's dimensions and orientation, ensuring precise alignment before transfer.

For directional changes, orthogonal transfer units or rotary turntables are employed. These mechanisms can pivot spring units 90 or 180 degrees within a compact 2.5-meter radius, preparing them for longitudinal or transverse entry into the subsequent machine. Overhead gantry loaders and pneumatic pushers represent the final stage, lifting or sliding the stabilized spring units onto the mattress build tables or into automated encapsulation cells with millimeter precision.

Common automated line configurations

Depending on the factory's architectural layout, automated lines are typically configured in straight-line, L-shape, or U-shape topologies. A straight-line configuration offers the highest transfer velocity—often exceeding 1.2 meters per second—and is ideal for facilities with elongated, rectangular floor plans. However, this setup typically requires a minimum linear clearance of 25 to 30 meters.

Conversely, L-shape and U-shape configurations are favored in square-footprint facilities where space optimization is critical. These layouts utilize corner transfer modules to fold the production line back on itself, significantly reducing the required length while centralizing the operator control zones. Regardless of the topology, advanced systems incorporate vertical buffering modules, which can temporarily store up to 10 spring units in a vertical rack, absorbing minor downstream delays without halting the upstream coiling machines.

How transfer systems connect with pocket spring machines

The interface between the transfer system and the primary assembly machinery requires exact mechanical and digital synchronization. As spring rows are welded or bonded together, the transfer line must match the ejection speed of the assembly unit. Traditional hot-melt glue systems often necessitate a cooling buffer zone, requiring the transfer line to accommodate a 45 to 60-second curing delay before subjecting the unit to lateral forces.

However, the adoption of advanced, adhesive-free assembly technologies dramatically alters this dynamic. When interfacing with equipment like the SX-NG Non-glue pocket spring machine, the transfer system can bypass cooling buffers entirely. Because non-glue ultrasonic welding provides immediate structural integrity, the transfer line can accelerate the units directly into the encapsulation or buffering phase, reducing the overall line footprint by up to 15% and increasing continuous throughput velocity.

Key Technical Specifications to Compare

Procuring a pocket spring transfer line requires a rigorous comparative analysis of technical specifications across different manufacturers. The mechanical and electronic parameters dictate not only the peak performance capabilities of the system but also its long-term reliability and adaptability to future mattress designs.

Engineers and procurement teams must look beyond superficial marketing claims and evaluate the underlying drive technologies, control architectures, and precision metrics. Selecting a system with inadequate payload capacities or sluggish control responses will inevitably bottleneck the entire mattress production facility, negating the value of upstream investments.

Transfer speed and production capacity

Transfer speed and volumetric capacity are the primary metrics defining a system's output potential. Industry-leading transfer lines utilize AC servo motors coupled with low-backlash planetary gearboxes to achieve rapid acceleration profiles and peak transfer speeds of 1.5 to 1.8 meters per second. This speed must be finely controlled to prevent inertial shifting of the un-encapsulated spring rows.

Capacity is also measured by the system's payload limits and dimensional versatility. A robust system should comfortably handle peak payloads of up to 50 kilograms to accommodate high-density, multi-zone micro-coil units. Furthermore, the line should support dynamic width adjustments, seamlessly transitioning between handling 0.9-meter twin units and 2.0-meter king units without requiring manual mechanical intervention.

Control system and automation features

The intelligence of the transfer line resides in its control system and automation architecture. Modern lines rely on a distributed PLC (Programmable Logic Controller) network communicating over high-speed industrial protocols like EtherCAT or PROFINET. This architecture ensures sub-millisecond response times, allowing the system to track multiple spring units simultaneously across different zones of the transfer line.

Advanced HMI (Human-Machine Interface) panels provide operators with real-time diagnostics, visual fault tracking, and OEE analytics. Key automation features to evaluate include auto-recovery protocols following an emergency stop (E-stop), recipe management for different mattress models, and integration capabilities with factory-wide ERP (Enterprise Resource Planning) or MES (Manufacturing Execution Systems) via OPC UA standards.

Manual handling versus automated transfer

To quantify the technical leap from traditional methods, an objective comparison of operational specifications is necessary. The transition from manual or semi-manual handling to fully automated servo-driven transfer yields exponential improvements in process control.

This data underscores why manual handling is incompatible with modern, high-speed assembly. The automated line's superior positioning accuracy (± 2.0 mm) ensures that spring units arrive perfectly squared at the final encapsulation station, practically eliminating rework caused by skewed core assemblies.

Implementation and Factory Integration

Integrating a large-scale pocket spring transfer line into an existing operational factory is a complex engineering project that requires meticulous planning. The physical footprint, electrical demands, and synchronization requirements mean that plug-and-play installation is virtually impossible. A phased implementation strategy is necessary to minimize disruption to ongoing production.

Successful integration hinges on a collaborative effort between the equipment supplier's installation engineers and the factory's internal maintenance and production teams. By systematically addressing site preparation, rigorous commissioning, and long-term maintenance protocols, factories can achieve a rapid ramp-up to target OEE levels.

Pre-installation assessment steps

Pre-installation assessment must begin months before the equipment arrives on site. The primary consideration is the structural integrity and topography of the factory floor. Heavy-duty transfer lines, particularly those with overhead gantry modules, require a minimum floor load-bearing capacity of 500 to 750 kg/m². Additionally, the floor levelness must be verified; variations exceeding 5mm over a 3-meter span will require specialized leveling pads or structural grouting to prevent mechanical binding.

Electrical and pneumatic utilities must also be pre-routed. A standard automated line typically demands a dedicated 380V, 3-phase, 50/60Hz power supply with a sustained draw capacity of 15kW to 25kW, depending on the number of servo axes. Clean, dry compressed air at a minimum of 0.6 MPa (6 bar) must be piped to the installation zone to ensure reliable operation of the pneumatic pushers and clamping mechanisms.

Commissioning and operator training

The commissioning phase involves the physical assembly, electrical termination, and rigorous software testing of the line. A standard commissioning window spans 10 to 14 days. During this period, technicians run dry cycles to verify motor tuning and sensor alignments, followed by wet cycles using actual spring units to calibrate acceleration profiles and prevent unit distortion.

Operator training is conducted concurrently with final commissioning. Maintenance personnel must be trained on PLC fault code diagnostics, servo drive resetting, and mechanical alignment procedures. Line operators focus on HMI navigation, recipe selection, and safe jam-clearing protocols. The ultimate goal of this phase is to achieve a sustained OEE of 85% or higher within the first 30 days of active production.

Preventive maintenance planning

To protect the capital investment and ensure continuous uptime, a stringent preventive maintenance (PM) plan must be instituted immediately upon handover. Automated transfer lines consist of hundreds of moving parts subjected to high-frequency cyclic loading, making proactive lubrication and inspection critical.

Standard PM protocols dictate that linear guide rails and ball screws be lubricated every 500 to 1,000 operational hours, depending on the factory's ambient dust levels. Photoelectric sensors and safety light curtains must be cleaned and recalibrated weekly to prevent false tripping. Furthermore, facilities should establish a critical spare parts inventory—including proximity switches, timing belts, and servo drives—to ensure that the Mean Time To Repair (MTTR) remains under 4 hours in the event of a component failure.

Choosing the Right Pocket Spring Transfer Line

The decision to invest in a specific pocket spring transfer line involves balancing upfront capital expenditure (CAPEX) with projected long-term operational savings (OPEX). With numerous domestic and international machinery builders offering varying levels of automation, selecting the right partner requires a comprehensive vendor evaluation framework.

Manufacturers must look past the initial purchase price and evaluate the total lifecycle cost of the equipment. A cheaper, poorly integrated system will inevitably incur hidden costs through excessive downtime, higher scrap rates, and premature component failure, ultimately stifling factory profitability.

Supplier selection criteria

Supplier selection should be heavily weighted toward original equipment manufacturers (OEMs) with a proven track record in intralogistics and mattress manufacturing automation. Key criteria include the supplier's adherence to international manufacturing standards (such as ISO 9001 and CE or UL certifications) and the pedigree of the sub-components used. Lines built with globally recognized automation brands (e.g., Siemens, Allen-Bradley, SMC, Festo) guarantee easier sourcing of replacement parts.

Additionally, buyers must evaluate the supplier's post-sales support infrastructure. The vendor should offer remote diagnostic capabilities via secure VPN connections, allowing their engineers to troubleshoot PLC logic errors without requiring a physical site visit. A supplier's commitment to a maximum 48-hour dispatch time for critical spare parts is a mandatory requirement for maintaining high-volume production schedules.

Total cost of ownership

Calculating the Total Cost of Ownership (TCO) over a standard 7-to-10-year depreciation cycle provides a true picture of the investment's value. The initial CAPEX for a fully automated transfer line typically ranges from $120,000 to $350,000, heavily dependent on the layout length and the inclusion of gantry systems or vertical buffers.

However, the OPEX reductions are substantial. By reallocating three to five manual material handlers per shift, a facility operating two shifts can save upwards of $200,000 annually in direct labor and associated benefits. When factoring in the reduction of handling-induced scrap materials and the energy efficiency of modern servo systems (which often consume less than 12 kWh during continuous operation), the comprehensive TCO heavily favors advanced automation over manual legacy systems.

When to invest in advanced automation

Determining the exact moment to invest in advanced automation requires an analysis of current bottlenecks and future growth projections. As a general industry benchmark, when a facility's production consistently exceeds 300 to 350 mattress units per day, the logistical friction of manual handling becomes a hard barrier to further scaling.

At this threshold, the financial metrics align favorably for capital expenditure. Facilities operating at or above this volume typically realize a Return on Investment (ROI) and payback period of 14 to 24 months. For factories utilizing high-speed assembly technologies, integrating a dedicated transfer system is not merely an option but an operational necessity to fully leverage the speed of their primary machinery and maintain a dominant position in a competitive market.

Key Takeaways

• Use an automated pocket spring transfer line to convert fragmented manual handling into a continuous production flow between spring assembly and final mattress build stages.
• Target cycle times of 25 to 30 seconds per king-size spring unit to match high-speed pocket spring equipment and prevent work-in-progress accumulation.
• Reduce manual handling of 15 to 25 kilogram spring units to lower operator fatigue, injury risk, and deformation-related quality problems.
• Benchmark automation impact against shift output: fully automated lines can reach 600 to 800 units per shift versus 150 to 200 units with manual handling.
• Evaluate transfer line ROI through labor reduction, scrap reduction of about 12% to 18%, lower defect rates, and improved overall equipment effectiveness.

Frequently Asked Questions

What is a pocket spring transfer line?

A pocket spring transfer line is an automated handling system that moves assembled spring units between production stages, such as coiling, bonding, gluing, and mattress assembly, with minimal manual intervention.

How does automation improve mattress factory throughput?

Automated transfer lines create a paced, continuous material flow, reducing waiting time, manual staging, and machine starvation. In high-volume settings, they can support 600 to 800 units per 8-hour shift.

Can a transfer line reduce pocket spring defects?

Yes. By preventing improper lifting, stacking, and spring deformation, advanced transfer systems can help lower defect rates to below 0.5% and reduce scrap caused by row misalignment.

When should a factory consider upgrading to a fully automated line?

Factories should consider automation when manual handling limits throughput, increases labor costs, causes WIP buildup, or leads to frequent spring unit deformation and inconsistent quality.

How many operators are typically needed for an automated transfer line?

A fully automated pocket spring transfer line may require only one monitoring operator, compared with four to six operators for purely manual handling in a standard shift.
