Achieve Unmatched Precision with Ultra-4 Dual Wire Pocket Spring Machines

Introduction

In modern mattress production, the transfer line determines whether pocket springs move from wire forming to wrapping and assembly with consistent speed, alignment, and tension. Ultra-4 dual wire Pocket Spring Machines raise that standard by combining high-output automation with tighter control over coil geometry, sealing accuracy, and material flow. This article explains why that precision matters on a pocket spring transfer line, where production losses typically occur, and how dual wire capability can improve throughput, product consistency, and downstream efficiency for manufacturers competing on both quality and scale.

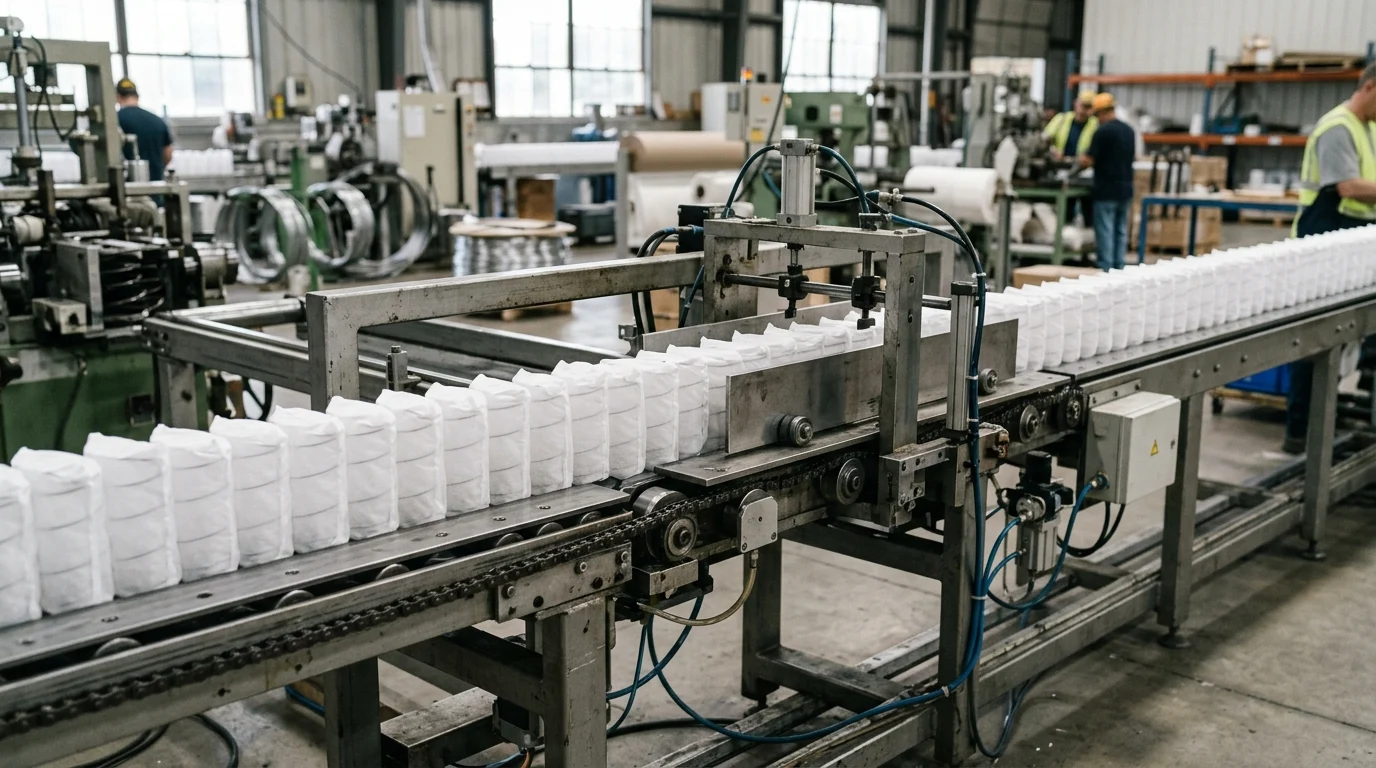

Why Pocket Spring Transfer Lines Matter

The global mattress manufacturing industry has undergone a radical transformation over the past decade, driven heavily by consumer demand for individualized comfort and the logistical requirements of modern retail. At the center of this shift is the transition from traditional, interconnected innerspring units to individually wrapped coils. To meet the aggressive volume and precision demands of today's market, facilities are increasingly relying on the advanced Pocket Spring Transfer Line. These sophisticated systems bridge the gap between raw wire processing and final spring unit assembly, ensuring continuous, high-speed production without sacrificing structural integrity.

Traditional manufacturing methods often required manual intervention to move coiled springs into wrapping and gluing stations, introducing human error, inconsistent tension, and significant bottlenecks. Modern transfer lines eliminate these variables by fully automating the conveyance, wrapping, and sealing processes. By integrating servo-driven mechanisms and real-time tension monitoring, these systems allow manufacturers to maintain strict quality tolerances even at maximum operational speeds. Understanding the mechanics and market forces behind these systems is essential for plant managers looking to optimize their capital equipment investments.

Market drivers behind higher-precision production

The surge in "bed-in-a-box" e-commerce models has fundamentally altered the structural requirements of mattress cores. Roll-packing exerts immense compressive forces on spring units, requiring the use of high-tensile carbon steel wire that can recover 100% of its original height upon unpacking. This logistical reality forces manufacturers to achieve higher precision in the coiling and tempering phases. A modern Transfer Line ensures that each spring maintains exact pitch and barrel dimensions before being sealed in non-woven fabric, preventing the distortion that leads to post-compression failure.

Furthermore, consumer preference has shifted decisively toward zoned support systems. Ergonomic designs featuring 3-zone, 5-zone, or 7-zone configurations require the seamless integration of different wire gauges—typically ranging from 1.6mm for softer shoulder zones to 2.2mm for firm lumbar support. Producing these complex arrangements manually or with legacy equipment results in unacceptable cycle times and high defect rates. The market demand for premium hybrid mattresses, which has seen sustained double-digit year-over-year growth, dictates that production lines must handle multi-gauge zoning natively and at high speeds.

How transfer lines improve throughput and consistency

Throughput and consistency are the primary metrics by which mattress assembly equipment is judged. Older, decentralized coiling and wrapping machines generally cap out at a maximum of 80 to 100 springs per minute. In contrast, a fully integrated Pocket Spring Transfer Line can comfortably sustain production rates exceeding 250 springs per minute. This exponential increase in throughput is achieved by synchronizing the coiling head, the fabric folding mechanism, and the ultrasonic welding horn through a centralized Programmable Logic Controller (PLC).

Beyond sheer speed, automated transfer lines drastically improve consistency. By maintaining continuous tension on the non-woven fabric and utilizing precision servo motors for indexing, the line ensures that every pocket is identical in volume. This consistency prevents "spring overlap" or "fabric starvation," which are common causes of noise and uneven wear in finished mattresses.

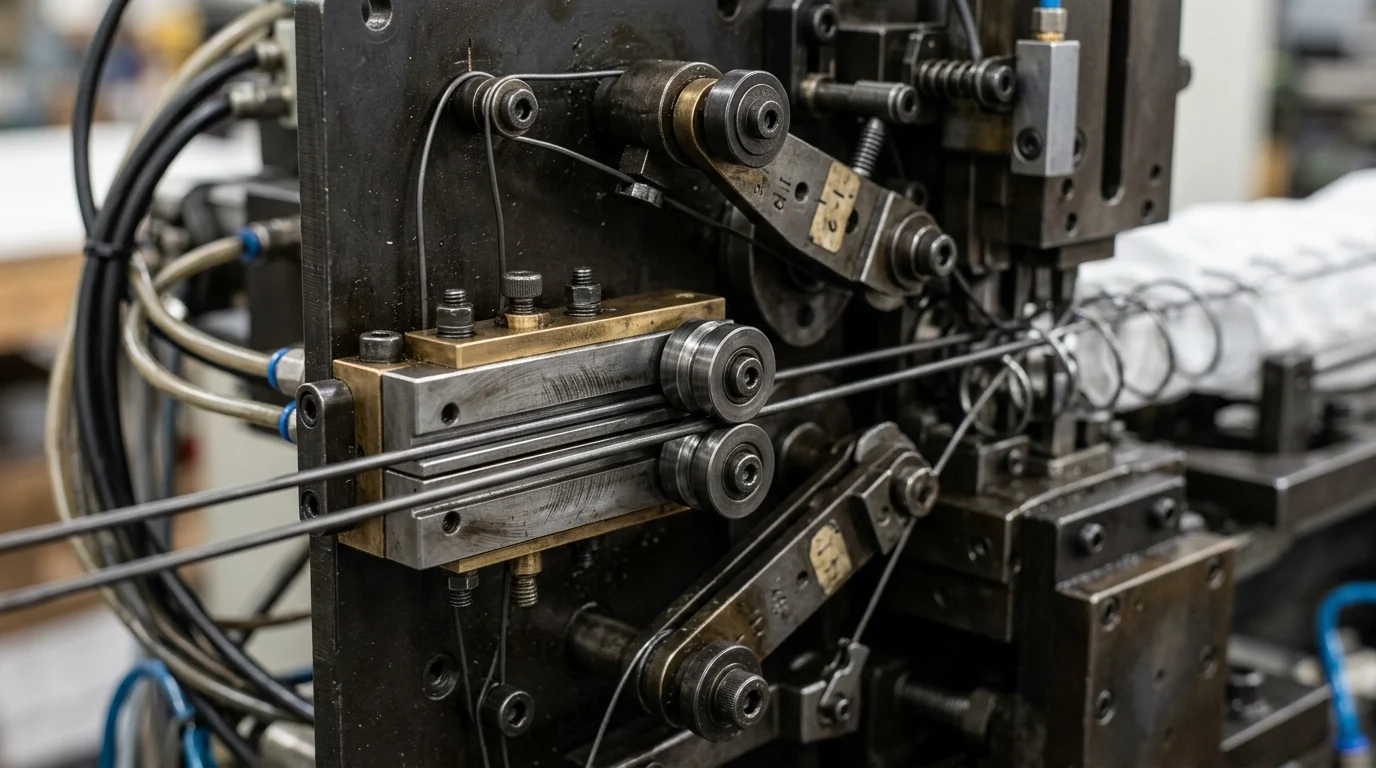

Technical Advantages of the Ultra-4 Dual Wire System

Among the technological advancements in mattress manufacturing, the Ultra-4 Dual Wire System represents a significant leap forward in production capability. Unlike standard machines that require physical spool changeovers or separate lines to produce different firmness levels, dual wire systems process two distinct wire gauges simultaneously. This architecture allows a single Pocket Spring Machine to continuously output complex, multi-zoned spring units without stopping the line to adjust parameters or swap raw materials. The mechanical sophistication of the Ultra-4 lies in its synchronized feeding, coiling, and transfer modules, which operate in complete harmony to eliminate dead time.

The integration of dual wire technology fundamentally changes plant floor logistics. By consolidating the production of varied spring types into a single, continuous footprint, facilities can reduce work-in-progress (WIP) inventory and minimize the floor space previously dedicated to staging different coil batches. Evaluating the technical merits of the Ultra-4 system requires a close look at its physical specifications, its operational mechanics, and the benchmarking standards used to measure its performance against legacy equipment.

Key specifications that affect spring accuracy

The accuracy of a pocketed coil is governed by strict mechanical specifications that the machine must consistently hit. The Ultra-4 system is engineered to handle a broad wire gauge spectrum, typically accommodating diameters from 1.2mm up to 2.4mm. This range is critical, as it covers everything from ultra-plush micro-coils to heavy-duty perimeter support springs. The coiling head features programmable pitch and diameter controls, allowing for spring heights ranging from 80mm to 250mm and barrel diameters from 40mm to 75mm.

Accuracy is further dictated by the tempering and cooling specifications within the line. The Ultra-4 utilizes high-frequency low-voltage electrical currents to heat-treat the wire immediately after coiling, relieving mechanical stress and locking in the spring's memory. The system regulates this tempering process to within a ±5°C tolerance, ensuring uniform tensile strength across every unit. Without this precise thermal control, springs would exhibit varying degrees of compression loss over their lifecycle, leading to noticeable sagging in the final mattress.

Benefits of dual wire feeding and synchronized forming

The primary advantage of the dual wire feeding mechanism is the total elimination of changeover downtime when manufacturing zoned mattress cores. In a standard setup, switching from a 1.8mm wire to a 2.0mm wire requires halting the machine, re-threading the coiling head, and recalibrating the tension—a process that can take 15 to 30 minutes. The Ultra-4 houses two independent wire decoilers and feeding paths that converge at a rapid-switching coiling block. The PLC dictates exactly when to seamlessly cut one wire and engage the other, allowing alternating zones to be produced in a single continuous strip.

Synchronized forming ensures that the transition between different wire gauges does not disrupt the fabric wrapping phase. Because the transfer mechanism matches the speed of the coiling head precisely, the pockets remain uniformly spaced regardless of the varying coil stiffness inside them. This synchronization reduces mechanical jamming by over 80% compared to asynchronous systems, extending the lifespan of the cutting blades and ultrasonic welding horns by maintaining a predictable, steady mechanical rhythm.

How to benchmark machine performance

To properly evaluate the Ultra-4 or any advanced Pocket Spring system, plant engineers must benchmark performance using standardized industrial metrics. Overall Equipment Effectiveness (OEE) is the gold standard, factoring in availability, performance, and quality. A properly calibrated Ultra-4 system should consistently achieve an OEE of >85%, a stark contrast to the 60-65% typical of older, semi-automated lines. Scrap rate is another vital benchmark; top-tier machines should maintain a scrap rate of less than 0.5% during steady-state operation.

Cycle time and energy efficiency also serve as critical benchmarks. Measuring the exact kilowatt-hour (kWh) consumption per 1,000 springs provides a clear picture of the machine's ongoing operational cost.

Impact on Quality and Production Efficiency

The installation of an advanced transfer line reverberates throughout the entire production facility, fundamentally altering both quality control paradigms and operational efficiency. High-speed automation removes the variability of human handling, which is traditionally the largest source of defects in pocket spring manufacturing. When a machine is capable of producing upwards of 15,000 springs per hour, even minor deviations in calibration can result in massive volumes of scrap. Therefore, understanding how these systems impact quality and efficiency is vital for maintaining profitability.

Efficiency in this context is not merely a measure of speed, but rather the optimal balancing of inputs—labor, energy, and maintenance—against the output of sellable, defect-free goods. By leveraging closed-loop process controls and advanced welding technologies, modern lines drastically reduce the cost per unit while simultaneously elevating the structural consistency of the final mattress core.

Quality metrics and common defect patterns

Quality in pocket spring manufacturing is defined by strict metrics: spring height uniformity (tolerance of ±2mm), weld seal integrity (capable of withstanding >30N of lateral pull force), and zero false seals. A false seal occurs when the ultrasonic horn fails to properly fuse the non-woven fabric, allowing the compressed spring to burst through the pocket. This defect is particularly disastrous for roll-packed mattresses, as a single burst spring can rupture the vacuum seal of the entire finished product.

Common defect patterns in legacy systems include "barrel distortion," where the spring leans to one side due to uneven wire tempering, and "fabric skew," where uneven tension causes the pocket strip to curve. Advanced systems utilize continuous optical inspection sensors to monitor the geometric profile of each spring before it is wrapped. If the system detects a lean angle exceeding 3 degrees or an incomplete weld, it automatically flags and rejects the specific segment without halting the entire production line, keeping defect rates well below the industry threshold of 0.5%.

Balancing labor, maintenance, energy, and output

Achieving peak production efficiency requires balancing high output with the costs of labor, maintenance, and energy. A fully automated Pocket Spring Transfer Line typically reduces the required labor force from three operators per shift to just one technician who monitors the HMI (Human-Machine Interface) and manages raw material staging. This 66% reduction in direct labor costs significantly accelerates the equipment's return on investment.

Maintenance and energy consumption are similarly optimized. Modern servo-driven systems consume approximately 30% less power than pneumatic or older mechanical-cam driven machines, averaging around 18 kW to 22 kW per hour of continuous operation. Furthermore, the shift from reactive to predictive maintenance—enabled by vibration sensors and automated lubrication systems—extends major service intervals from 500 hours to over 1,200 hours. This reduction in planned downtime directly increases the total volume of output per quarter.

Process controls that improve repeatability

The secret to the repeatability of modern dual-wire systems lies in their closed-loop process controls. Unlike open-loop systems that execute commands regardless of the physical outcome, closed-loop systems constantly measure their own output and adjust in real-time. For example, active tension controllers continuously monitor the feed rate of the non-woven fabric. If a slight stretch in the fabric is detected, the servo motors automatically micro-adjust their speed to maintain the exact pocket width, preventing the "creeping" error that misaligns springs over a long production run.

Ultrasonic welding stability is another critical control point. The generator powering the welding horn must maintain a strict 20 kHz frequency to ensure consistent melting of the polypropylene fabric. Advanced PLCs monitor the acoustic impedance and automatically adjust the amplitude to compensate for minor variations in fabric thickness or ambient plant humidity. This level of process control ensures that the first spring produced on a Monday morning is identical in specification and quality to the last spring produced on a Friday afternoon.

How to Evaluate and Select a Machine

Procuring a multi-million-dollar piece of capital equipment like a dual-wire pocket spring system is a complex strategic decision that extends far beyond comparing spec sheets. The selection process dictates the trajectory of a manufacturer's production capabilities for the next 10 to 15 years. Consequently, evaluating a machine requires a holistic approach that scrutinizes the hardware, the software ecosystem, and the supplier's corporate infrastructure.

A rigorous evaluation framework must assess the vendor's ability to support the machine globally, the equipment's compliance with regional industrial standards, and the physical realities of installing the line in an existing facility. By shifting the focus from the initial capital expenditure (CapEx) to the Total Cost of Ownership (TCO), manufacturers can avoid the trap of purchasing a superficially inexpensive machine that ultimately drains profitability through excessive downtime and high defect rates.

Supplier qualifications, service, and spare parts support

The reliability of a Pocket Spring Machine is intrinsically linked to the qualifications and infrastructure of its manufacturer. Buyers should demand ISO 9001 certification as a baseline, ensuring that the supplier adheres to stringent quality management systems during the machine's fabrication. Furthermore, the technological complexity of dual-wire servo systems requires robust after-sales support. A vendor's SLA (Service Level Agreement) should explicitly guarantee remote diagnostic support within 2 hours and on-site technician deployment within 48 to 72 hours for critical failures.

Spare parts availability is equally crucial. Because highly specialized components like ultrasonic generators, customized servo drives, and titanium welding horns are not off-the-shelf items, the supplier must maintain regional parts depots. Buyers should require a contractual guarantee that critical wear parts will be dispatched within 24 hours. Purchasing a high-speed machine from a supplier lacking this logistical backbone introduces unacceptable supply chain risk, where a single broken gear could halt a plant's entire mattress assembly process for weeks.

Compliance, installation readiness, and plant fit

Before issuing a purchase order, plant engineers must verify that the equipment complies with all local regulatory and safety standards. In the European market, CE marking is mandatory, while North American facilities require UL or CSA certification for electrical panels and OSHA compliance for operator safety. Modern transfer lines must feature comprehensive safety interlocks, light curtains, and emergency stop circuits that immediately cut power to the high-speed coiling heads if a physical barrier is breached. Additionally, acoustic enclosures are necessary to keep operational noise levels below the OSHA threshold of 80 dB to 85 dB for an 8-hour shift.

Installation readiness and plant fit require precise spatial and infrastructural planning. A full-scale dual-wire transfer line typically requires a linear footprint of approximately 12 to 15 meters in length and 4 meters in width. The facility must also possess the correct utility infrastructure, generally requiring a stable 380V/50Hz or 480V/60Hz 3-phase power supply capable of handling sudden amperage spikes during the initial heating of the tempering units. Floor loading capacities must be verified, as these machines often exceed 8,000 kilograms and require heavy-duty vibration-damping mounts.

Comparing total cost of ownership across vendors

Comparing vendors solely on the sticker price of the machinery is a fundamentally flawed procurement strategy. A comprehensive Total Cost of Ownership (TCO) analysis must map out costs over a standard 5-to-7-year depreciation cycle. While Vendor A might offer a machine for $200,000 and Vendor B for $280,000, Vendor B's equipment might feature superior ultrasonic technology that reduces fabric waste by 2% and uses 15% less electricity.

When calculating TCO, manufacturers must factor in the cost of consumable parts (like cutting blades and welding horns), the average cost of unplanned downtime (which can exceed $5,000 per hour in lost revenue for a high-volume plant), and the labor savings generated by automation. In many cases, the premium paid for a high-tier dual-wire system is fully recovered within 14 to 18 months solely through the reduction of scrap materials and the consolidation of operator shifts, making the initially more expensive machine the far more profitable long-term investment.

When the Investment Makes Sense

Determining the precise moment to upgrade to a high-speed dual-wire transfer line requires a careful analysis of current production bottlenecks, market trajectory, and capital availability. For many mid-sized manufacturers, legacy equipment may suffice for producing standard, entry-level bedding. However, as business scales and retail partners demand more complex, higher-margin products, the hidden costs of running outdated machinery begin to erode profit margins.

The investment decision ultimately hinges on identifying the inflection point where the cost of maintaining the status quo—measured in lost contracts, high labor costs, and excessive material waste—exceeds the amortized cost of the new equipment. Once the financial justification is established, the focus must immediately shift to executing a flawless implementation strategy to ensure the new line reaches peak operational efficiency as rapidly as possible.

Production scenarios that justify the upgrade

Several distinct production scenarios clearly justify the capital expenditure for an Ultra-4 style upgrade. The most common trigger is volume. When a facility consistently processes orders exceeding 15,000 mattress units per month, the labor and WIP inventory costs associated with batch-producing different coil gauges become mathematically unsustainable. At this volume, a dual-wire Transfer Line eliminates the staging bottlenecks, allowing for a pure just-in-time (JIT) manufacturing flow from wire coil to finished mattress core.

Another critical scenario is a strategic pivot into the premium hybrid mattress market. If a brand's product roadmap dictates a shift toward 5-zone or 7-zone ergonomic designs, attempting to build these units manually using single-wire machines will result in scrap rates often exceeding 3% to 5%. The dual-wire system is fundamentally required to produce these complex zones profitably. Furthermore, if a plant is experiencing an OEE consistently below 65% due to aging mechanical components and frequent breakdowns, replacing multiple unreliable legacy machines with a single, highly efficient automated line is a sound operational imperative.

Implementation steps to reduce commissioning risk

To mitigate the substantial risks associated with commissioning heavy industrial equipment, manufacturers must follow a rigid implementation protocol. The process begins months before delivery with a Factory Acceptance Test (FAT) at the supplier's facility. During the FAT, the buyer must run their own raw materials (specific wire gauges and non-woven fabrics) through the machine to verify that it meets the agreed-upon speed of 250+ springs per minute and defect rates of <0.5% under continuous load.

Once the equipment arrives at the buyer's plant, the Site Acceptance Test (SAT) validates that the machine performs identically in its permanent environment, accounting for local power fluctuations and ambient humidity.

Key Takeaways

• The most important conclusions and rationale for Pocket Spring Transfer Line
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What does a Pocket Spring Transfer Line do?

It automates coiling, wrapping, sealing, and transferring pocket springs in one continuous process, reducing manual handling and keeping spring dimensions consistent at high speed.

How fast can a modern transfer line run?

A modern automated line typically produces about 250 to 280 springs per minute, compared with roughly 80 to 100 springs per minute on older standalone systems.

Why is the Ultra-4 Dual Wire system useful for zoned mattresses?

It processes two wire gauges at the same time, so you can produce multi-zone spring units continuously without stopping for spool changes or manual adjustments.

How does a transfer line improve mattress quality?

It uses servo control and tension monitoring to keep pocket size, spring pitch, and sealing consistent, which helps prevent overlap, noise, and uneven wear.

Can a Pocket Spring Transfer Line reduce labor and waste?

Yes. Automated lines often need just one operator and can cut fabric waste to under 1.5%, improving efficiency and lowering production costs.
